(Standard Specification : SNI 04-3234/SPLN 42-6)

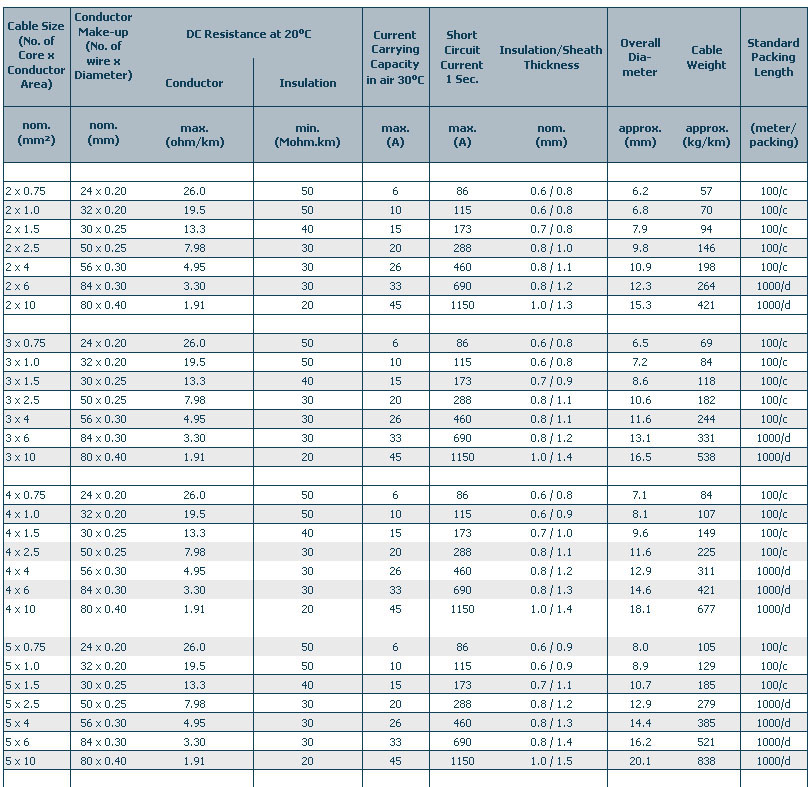

Multi-cores Flexible Copper Conductor PVC Insulated & Sheathed Cables
Applications:
- Power cord or internal wiring with low mechanical stress for electrical equipments, machineries, luminaires and other portable appliances used in dry indoor premises.
- Permanent exposed wiring in humid environment, installation in tray or under plaster for general purpose 220 - 240 VAC single phase domestic applications, inherently flame retardant in compliance with IEC 60332-1.
Cable sizes 0.75 - 2.5 mm2 are specified in SPLN 42-6, while 4 - 10 mm² are adapted from IEC standards
Other sizes and packing lengths are available upon request
Test Voltage
Colors Available
Packing lengths
: 2000 VAC/5 minutes, except for insulation thickness less than 0.7 mm (1500 VAC/5 minutes)
: for 2 - 4 cores, System - O (Blue-Black-Yellow-Red), Beige colored sheath for 3 - 5 cores, System - I
(Green/Yellow-Blue-Black-Yellow-Red), Beige colored sheath
: 100/c in coil @ 100 meter, 1000/d in non-returnable wooden drum @ 1000 meter
